Interrupts Namespace Reference

Typedefs
typedef void(*	InterruptHandler_t) (struct registers *)

Enumerations
enum	Exception {   EXCEPTION_DIVIDE_BY_ZERO = 0x00, EXCEPTION_DEBUG = 0x01, EXCEPTION_NON_MASK_INT = 0x02, EXCEPTION_BREAKPOINT = 0x03,   EXCEPTION_OVERFLOW = 0x04, EXCEPTION_BOUND_RANGE = 0x05, EXCEPTION_INVALID_OPCODE = 0x06, EXCEPTION_DEVICE_UNAVAIL = 0x07,   EXCEPTION_DOUBLE_FAULT = 0x08, EXCEPTION_COPROCESSOR_SEG = 0x09, EXCEPTION_INVALID_TSS = 0x0A, EXCEPTION_SEGMENT_MISSING = 0x0B,   EXCEPTION_STACK_SEG_FAULT = 0x0C, EXCEPTION_PROTECT_FAULT = 0x0D, EXCEPTION_PAGE_FAULT = 0x0E, EXCEPTION_FPU_EXCEPTION = 0x10,   EXCEPTION_ALIGNMENT_CHECK = 0x11, EXCEPTION_MACHINE_CHECK = 0x12, EXCEPTION_SIMD_FLOATPOINT = 0x13, EXCEPTION_VIRTUALIZATION = 0x14,   EXCEPTION_SECURITY = 0x1E }
enum	Interrupt {   INTERRUPT_0 = 0x20, INTERRUPT_1 = 0x21, INTERRUPT_2 = 0x22, INTERRUPT_3 = 0x23,   INTERRUPT_4 = 0x24, INTERRUPT_5 = 0x35, INTERRUPT_6 = 0x26, INTERRUPT_7 = 0x27,   INTERRUPT_8 = 0x28, INTERRUPT_9 = 0x29, INTERRUPT_10 = 0x2A, INTERRUPT_11 = 0x2B,   INTERRUPT_12 = 0x2C, INTERRUPT_13 = 0x2D, INTERRUPT_14 = 0x2E, INTERRUPT_15 = 0x2F }

Functions
void	exception0 ()
void	exception1 ()
void	exception2 ()
void	exception3 ()
void	exception4 ()
void	exception5 ()
void	exception6 ()
void	exception7 ()
void	exception8 ()
void	exception9 ()
void	exception10 ()
void	exception11 ()
void	exception12 ()
void	exception13 ()
void	exception14 ()
void	exception15 ()
void	exception16 ()
void	exception17 ()
void	exception18 ()
void	exception19 ()
void	exception20 ()
void	exception21 ()
void	exception22 ()
void	exception23 ()
void	exception24 ()
void	exception25 ()
void	exception26 ()
void	exception27 ()
void	exception28 ()
void	exception29 ()
void	exception30 ()
void	exception31 ()
void	interrupt0 ()
void	interrupt1 ()
void	interrupt2 ()
void	interrupt3 ()
void	interrupt4 ()
void	interrupt5 ()
void	interrupt6 ()
void	interrupt7 ()
void	interrupt8 ()
void	interrupt9 ()
void	interrupt10 ()
void	interrupt11 ()
void	interrupt12 ()
void	interrupt13 ()
void	interrupt14 ()
void	interrupt15 ()
void	exceptionHandler (struct registers *regs)
void	interruptHandler (struct registers *regs)
void	init ()
void	registerHandler (uint8_t interrupt, InterruptHandler_t handler)

Variables
InterruptHandler_t	interruptHandlers [256]
void(*	exceptionHandlerStubs [ARCH_EXCEPTION_NUM])(void)
void(*	interruptHandlerStubs [ARCH_INTERRUPT_NUM])(void)

Typedef Documentation

InterruptHandler_t

typedef void(* Interrupts::InterruptHandler_t) (struct registers *)

Definition at line 79 of file isr.hpp.

Enumeration Type Documentation

Exception

enum Interrupts::Exception

Enumerator for mapping hardware exceptions to their purpose.

Enumerator
EXCEPTION_DIVIDE_BY_ZERO
EXCEPTION_DEBUG
EXCEPTION_NON_MASK_INT
EXCEPTION_BREAKPOINT
EXCEPTION_OVERFLOW
EXCEPTION_BOUND_RANGE
EXCEPTION_INVALID_OPCODE
EXCEPTION_DEVICE_UNAVAIL
EXCEPTION_DOUBLE_FAULT
EXCEPTION_COPROCESSOR_SEG
EXCEPTION_INVALID_TSS
EXCEPTION_SEGMENT_MISSING
EXCEPTION_STACK_SEG_FAULT
EXCEPTION_PROTECT_FAULT
EXCEPTION_PAGE_FAULT
EXCEPTION_FPU_EXCEPTION
EXCEPTION_ALIGNMENT_CHECK
EXCEPTION_MACHINE_CHECK
EXCEPTION_SIMD_FLOATPOINT
EXCEPTION_VIRTUALIZATION
EXCEPTION_SECURITY

Definition at line 25 of file isr.hpp.

               {
    EXCEPTION_DIVIDE_BY_ZERO    = 0x00,
    EXCEPTION_DEBUG             = 0x01,
    EXCEPTION_NON_MASK_INT      = 0x02,
    EXCEPTION_BREAKPOINT        = 0x03,
    EXCEPTION_OVERFLOW          = 0x04,
    EXCEPTION_BOUND_RANGE       = 0x05,
    EXCEPTION_INVALID_OPCODE    = 0x06,
    EXCEPTION_DEVICE_UNAVAIL    = 0x07,
    EXCEPTION_DOUBLE_FAULT      = 0x08,
    EXCEPTION_COPROCESSOR_SEG   = 0x09,
    EXCEPTION_INVALID_TSS       = 0x0A,
    EXCEPTION_SEGMENT_MISSING   = 0x0B,
    EXCEPTION_STACK_SEG_FAULT   = 0x0C,
    EXCEPTION_PROTECT_FAULT     = 0x0D,
    EXCEPTION_PAGE_FAULT        = 0x0E,
    // Exception 0xF is reserved
    EXCEPTION_FPU_EXCEPTION     = 0x10,
    EXCEPTION_ALIGNMENT_CHECK   = 0x11,
    EXCEPTION_MACHINE_CHECK     = 0x12,
    EXCEPTION_SIMD_FLOATPOINT   = 0x13,
    EXCEPTION_VIRTUALIZATION    = 0x14,
    // Exceptions 0x15-0x1D are reserved
    EXCEPTION_SECURITY          = 0x1E,
    // Exception 0x1F is reserved
};

Interrupt

enum Interrupts::Interrupt

Enumerator for mapping hardware interrupt values to zero-indexed interrupts for programming ease. Unlike the exceptions, which are defined by the CPU manufacturer, interrupts can have multiple purposes, so it would be counter-productive to name them here.

Enumerator
INTERRUPT_0
INTERRUPT_1
INTERRUPT_2
INTERRUPT_3
INTERRUPT_4
INTERRUPT_5
INTERRUPT_6
INTERRUPT_7
INTERRUPT_8
INTERRUPT_9
INTERRUPT_10
INTERRUPT_11
INTERRUPT_12
INTERRUPT_13
INTERRUPT_14
INTERRUPT_15

Definition at line 59 of file isr.hpp.

               {
    INTERRUPT_0     = 0x20,
    INTERRUPT_1     = 0x21,
    INTERRUPT_2     = 0x22,
    INTERRUPT_3     = 0x23,
    INTERRUPT_4     = 0x24,
    INTERRUPT_5     = 0x35,
    INTERRUPT_6     = 0x26,
    INTERRUPT_7     = 0x27,
    INTERRUPT_8     = 0x28,
    INTERRUPT_9     = 0x29,
    INTERRUPT_10    = 0x2A,
    INTERRUPT_11    = 0x2B,
    INTERRUPT_12    = 0x2C,
    INTERRUPT_13    = 0x2D,
    INTERRUPT_14    = 0x2E,
    INTERRUPT_15    = 0x2F,
};

Function Documentation

exception0()

void Interrupts::exception0

(

)

exception1()

void Interrupts::exception1

(

)

exception10()

void Interrupts::exception10

(

)

exception11()

void Interrupts::exception11

(

)

exception12()

void Interrupts::exception12

(

)

exception13()

void Interrupts::exception13

(

)

exception14()

void Interrupts::exception14

(

)

exception15()

void Interrupts::exception15

(

)

exception16()

void Interrupts::exception16

(

)

exception17()

void Interrupts::exception17

(

)

exception18()

void Interrupts::exception18

(

)

exception19()

void Interrupts::exception19

(

)

exception2()

void Interrupts::exception2

(

)

exception20()

void Interrupts::exception20

(

)

exception21()

void Interrupts::exception21

(

)

exception22()

void Interrupts::exception22

(

)

exception23()

void Interrupts::exception23

(

)

exception24()

void Interrupts::exception24

(

)

exception25()

void Interrupts::exception25

(

)

exception26()

void Interrupts::exception26

(

)

exception27()

void Interrupts::exception27

(

)

exception28()

void Interrupts::exception28

(

)

exception29()

void Interrupts::exception29

(

)

exception3()

void Interrupts::exception3

(

)

exception30()

void Interrupts::exception30

(

)

exception31()

void Interrupts::exception31

(

)

exception4()

void Interrupts::exception4

(

)

exception5()

void Interrupts::exception5

(

)

exception6()

void Interrupts::exception6

(

)

exception7()

void Interrupts::exception7

(

)

exception8()

void Interrupts::exception8

(

)

exception9()

void Interrupts::exception9

(

)

exceptionHandler()

void Interrupts::exceptionHandler

(

struct registers *

regs

)

CPU exception handler. Must be available for each exception stub to be able to call.

Hardware exception handler. Called by each exception handler stub.

Parameters

regs	CPU registers structure
regs	CPU registers structure. Includes interrupt number.

Definition at line 29 of file isr.cpp.

{
    panic(regs);
}

Here is the call graph for this function:

init()

void Interrupts::init

(

)

Definition at line 70 of file isr.cpp.

{
    // Set all of the gate addresses
    for (int exception = 0; exception < 32; exception++) {
        IDT::setGate(exception, (uint32_t)exceptionHandlerStubs[exception]);
    }

    // Remap the programmable interrupt controller
    writeByte(0x20, 0x11);
    writeByte(0xA0, 0x11);
    writeByte(0x21, 0x20);
    writeByte(0xA1, 0x28);
    writeByte(0x21, 0x04);
    writeByte(0xA1, 0x02);
    writeByte(0x21, 0x01);
    writeByte(0xA1, 0x01);
    writeByte(0x21, 0x0);
    writeByte(0xA1, 0x0);

    // Install the interrupt requests
    for (int interrupt = 0; interrupt < ARCH_INTERRUPT_NUM; interrupt++) {
        IDT::setGate(32 + interrupt, (uint32_t)interruptHandlerStubs[interrupt]);
    }

    // Load the IDT now that we've registered all of our IDT, IRQ, and ISR addresses
    IDT::init();
}

Here is the call graph for this function:

Here is the caller graph for this function:

interrupt0()

void Interrupts::interrupt0

(

)

interrupt1()

void Interrupts::interrupt1

(

)

interrupt10()

void Interrupts::interrupt10

(

)

interrupt11()

void Interrupts::interrupt11

(

)

interrupt12()

void Interrupts::interrupt12

(

)

interrupt13()

void Interrupts::interrupt13

(

)

interrupt14()

void Interrupts::interrupt14

(

)

interrupt15()

void Interrupts::interrupt15

(

)

interrupt2()

void Interrupts::interrupt2

(

)

interrupt3()

void Interrupts::interrupt3

(

)

interrupt4()

void Interrupts::interrupt4

(

)

interrupt5()

void Interrupts::interrupt5

(

)

interrupt6()

void Interrupts::interrupt6

(

)

interrupt7()

void Interrupts::interrupt7

(

)

interrupt8()

void Interrupts::interrupt8

(

)

interrupt9()

void Interrupts::interrupt9

(

)

interruptHandler()

void Interrupts::interruptHandler

(

struct registers *

regs

)

CPU interrupt handler. Must be available for each interrupt stub to be able to call.

Hardware interrupt handler. Called by each interrupt handler stub.

Parameters

regs	CPU registers structure
regs	CPU registers structure. Includes interrupt number.

Definition at line 39 of file isr.cpp.

{
    // After every interrupt we need to send an EOI to the PICs or it won't send another
    if (regs->int_num >= 0x28) {
        // Respond to secondard PIC
        writeByte(0xA0, 0x20);
    }

    // Respond to primary PIC
    writeByte(0x20, 0x20);

    if (interruptHandlers[regs->int_num]) {
        InterruptHandler_t handler = interruptHandlers[regs->int_num];
        handler(regs);
    }
}

Here is the call graph for this function:

registerHandler()

void Interrupts::registerHandler	(	uint8_t	interrupt,
		InterruptHandler_t	handler
	)

Parameters

interrupt
handler

Definition at line 98 of file isr.cpp.

{
    interruptHandlers[interrupt] = handler;
}

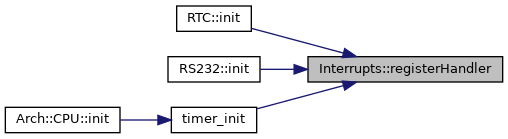

Here is the caller graph for this function:

Variable Documentation

exceptionHandlerStubs

void(* Interrupts::exceptionHandlerStubs[ARCH_EXCEPTION_NUM])(void)

Initial value:

= {
    exception0,  exception1,  exception2,  exception3,  exception4,  exception5,  exception6,  exception7,
    exception8,  exception9,  exception10, exception11, exception12, exception13, exception14, exception15,
    exception16, exception17, exception18, exception19, exception20, exception21, exception22, exception23,
    exception24, exception25, exception26, exception27, exception28, exception29, exception30, exception31
}

Definition at line 58 of file isr.cpp.

interruptHandlers

InterruptHandler_t Interrupts::interruptHandlers[256]

Definition at line 20 of file isr.cpp.

interruptHandlerStubs

void(* Interrupts::interruptHandlerStubs[ARCH_INTERRUPT_NUM])(void)

Initial value:

= {
    interrupt0, interrupt1, interrupt2,  interrupt3,  interrupt4,  interrupt5,  interrupt6,  interrupt7,
    interrupt8, interrupt9, interrupt10, interrupt11, interrupt12, interrupt13, interrupt14, interrupt15
}

Definition at line 65 of file isr.cpp.
