ports.cpp File Reference

#include <Arch/i686/ports.hpp>

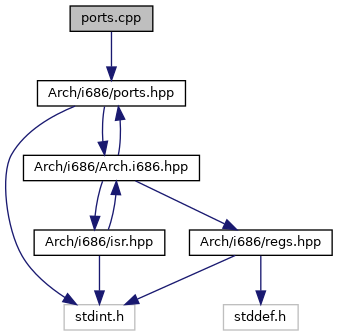

Include dependency graph for ports.cpp:

Go to the source code of this file.

Functions
uint8_t	readByte (uint16_t port)
void	writeByte (uint16_t port, uint8_t data)
void	writeByteSlow (uint16_t port, uint8_t data)
uint16_t	readWord (uint16_t port)
void	writeWord (uint16_t port, uint16_t data)
uint32_t	readLong (uint16_t port)
void	writeLong (uint16_t port, uint32_t data)

Detailed Description

CPU port access functions.

Author

Keeton Feavel (keeto.nosp@m.nfea.nosp@m.vel@c.nosp@m.edar.nosp@m.ville.nosp@m..edu)

Version

0.3

Date

2020-06-30

Copyright

Copyright the Xyris Contributors (c) 2020

Definition in file ports.cpp.

Function Documentation

readByte()

uint8_t readByte

(

uint16_t

port

)

Reads a byte (8 bits) off the CPU bus at a given port address.

Parameters

port	Port address

Returns

uint8_t Returned data byte

Definition at line 13 of file ports.cpp.

                                {
    uint8_t result;
    asm volatile("inb %1, %0" : "=a" (result) : "Nd" (port));
    return result;
}

Here is the caller graph for this function:

readLong()

uint32_t readLong

(

uint16_t

port

)

Reads a long (32 bits) off the CPU bus at a given port address.

Parameters

port	Port address

Returns

uint8_t Returned data long

Definition at line 37 of file ports.cpp.

                                 {
    uint32_t result;
    asm volatile("inl %1, %0" : "=a" (result) : "Nd" (port));
    return result;
}

readWord()

uint16_t readWord

(

uint16_t

port

)

Reads a word (16 bits) off the CPU bus at a given port address.

Parameters

port	Port address

Returns

uint8_t Returned data word

Definition at line 27 of file ports.cpp.

                                 {
    uint16_t result;
    asm volatile("inw %1, %0" : "=a" (result) : "Nd" (port));
    return result;
}

writeByte()

void writeByte	(	uint16_t	port,
		uint8_t	data
	)

Writes a byte (8 bits) to the CPU bus at a given port address.

Parameters

port	Port address
data	Byte to be written to the port

Definition at line 19 of file ports.cpp.

                                            {
    asm volatile("outb %0, %1" : : "a" (data), "Nd" (port));
}

Here is the caller graph for this function:

writeByteSlow()

void writeByteSlow	(	uint16_t	port,
		uint8_t	data
	)

Writes a byte (8 bits) slowly to the CPU bus at a given port address.

Parameters

port	Port address
data	Byte to be written to the port

Definition at line 23 of file ports.cpp.

                                                {
    asm volatile("outb %0, %1\njmp 1f\n1: jmp 1f\n1:" : : "a" (data), "Nd" (port));
}

writeLong()

void writeLong	(	uint16_t	port,
		uint32_t	data
	)

Writes a long (32 bits) to the CPU bus at a given port address.

Parameters

port	Port address
data	Long to be written to the port

Definition at line 43 of file ports.cpp.

                                             {
    asm volatile("outl %0, %1" : : "a"(data), "Nd" (port));
}

writeWord()

void writeWord	(	uint16_t	port,
		uint16_t	data
	)

Writes a word (16 bits) to the CPU bus at a given port address.

Parameters

port	Port address
data	Word to be written to the port

Definition at line 33 of file ports.cpp.

                                             {
    asm volatile("outw %0, %1" : : "a" (data), "Nd" (port));
}
