#include <framebuffer.hpp>

Public Member Functions
	Framebuffer ()

	Framebuffer (uint32_t width, uint32_t height, uint16_t depth, uint32_t pitch, void *addr)

	Framebuffer (uint32_t width, uint32_t height, uint16_t depth, uint32_t pitch, void *addr, FramebufferMemoryModel model, uint8_t redMaskSize, uint8_t redMaskShift, uint8_t greenMaskSize, uint8_t greenMaskShift, uint8_t blueMaskSize, uint8_t blueMaskShift)

void *	getAddress ()

uint32_t	getWidth ()

uint32_t	getHeight ()

uint16_t	getDepth ()

uint32_t	getPitch ()

uint8_t	getRedMaskSize ()

uint8_t	getRedMaskShift ()

uint8_t	getGreenMaskSize ()

uint8_t	getGreenMaskShift ()

uint8_t	getBlueMaskSize ()

uint8_t	getBlueMaskShift ()

uint8_t	getPixelWidth ()

FramebufferMemoryModel	getModel ()

void	setWidth (uint16_t val)

void	setHeight (uint16_t val)

void	setDepth (uint16_t val)

void	setPitch (uint16_t val)

void	setRedMaskSize (uint8_t val)

void	setRedMaskShift (uint8_t val)

void	setGreenMaskSize (uint8_t val)

void	setGreenMaskShift (uint8_t val)

void	setBlueMaskSize (uint8_t val)

void	setBlueMaskShift (uint8_t val)

void	setModel (FramebufferMemoryModel val)

Private Attributes
void *	_addr

uint32_t	_width

uint32_t	_height

uint16_t	_depth

uint32_t	_pitch

uint8_t	_redMaskSize

uint8_t	_redMaskShift

uint8_t	_greenMaskSize

uint8_t	_greenMaskShift

uint8_t	_blueMaskSize

uint8_t	_blueMaskShift

FramebufferMemoryModel	_memoryModel

Detailed Description

Definition at line 21 of file framebuffer.hpp.

Constructor & Destructor Documentation

◆ Framebuffer() [1/3]

Graphics::Framebuffer::Framebuffer ( )

Definition at line 19 of file framebuffer.cpp.

     : _addr(NULL)
     , _width(0)
     , _height(0)
     , _depth(0)
     , _pitch(0)
     , _redMaskSize(0)
     , _redMaskShift(0)
     , _greenMaskSize(0)
     , _greenMaskShift(0)
     , _blueMaskSize(0)
     , _blueMaskShift(0)
     , _memoryModel(Undefined_FBMM)
 {
     // Default constructor.
     if (!framebuffer)
         framebuffer = this;
 }

◆ Framebuffer() [2/3]

Graphics::Framebuffer::Framebuffer	(	uint32_t	width,
		uint32_t	height,
		uint16_t	depth,
		uint32_t	pitch,
		void *	addr
	)

Definition at line 38 of file framebuffer.cpp.

     : _addr(addr)
     , _width(width)
     , _height(height)
     , _depth(depth)
     , _pitch(pitch)
     , _redMaskSize(0)
     , _redMaskShift(0)
     , _greenMaskSize(0)
     , _greenMaskShift(0)
     , _blueMaskSize(0)
     , _blueMaskShift(0)
     , _memoryModel(Undefined_FBMM)
 {
     // Common parameters constructor
     if (!framebuffer)
         framebuffer = this;
 }

◆ Framebuffer() [3/3]

Graphics::Framebuffer::Framebuffer	(	uint32_t	width,
		uint32_t	height,
		uint16_t	depth,
		uint32_t	pitch,
		void *	addr,
		FramebufferMemoryModel	model,
		uint8_t	redMaskSize,
		uint8_t	redMaskShift,
		uint8_t	greenMaskSize,
		uint8_t	greenMaskShift,
		uint8_t	blueMaskSize,
		uint8_t	blueMaskShift
	)

Definition at line 57 of file framebuffer.cpp.

     : _addr(addr)
     , _width(width)
     , _height(height)
     , _depth(depth)
     , _pitch(pitch)
     , _redMaskSize(redMaskSize)
     , _redMaskShift(redMaskShift)
     , _greenMaskSize(greenMaskSize)
     , _greenMaskShift(greenMaskShift)
     , _blueMaskSize(blueMaskSize)
     , _blueMaskShift(blueMaskShift)
     , _memoryModel(model)
 {
     // All parameters constructor
     if (!framebuffer)
         framebuffer = this;
 }

Member Function Documentation

◆ getAddress()

void* Graphics::Framebuffer::getAddress ( )

inline

Definition at line 33 of file framebuffer.hpp.

33 { return _addr; }

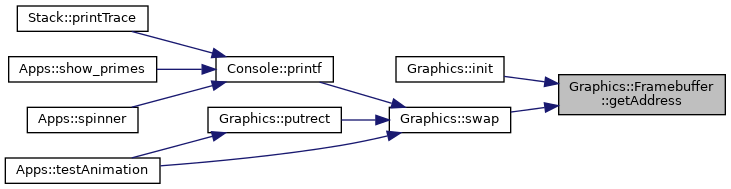

Here is the caller graph for this function:

◆ getBlueMaskShift()

uint8_t Graphics::Framebuffer::getBlueMaskShift ( )

inline

Definition at line 43 of file framebuffer.hpp.

43 { return _blueMaskShift; }

Here is the caller graph for this function:

◆ getBlueMaskSize()

uint8_t Graphics::Framebuffer::getBlueMaskSize ( )

inline

Definition at line 42 of file framebuffer.hpp.

42 { return _blueMaskSize; }

◆ getDepth()

uint16_t Graphics::Framebuffer::getDepth ( )

inline

Definition at line 36 of file framebuffer.hpp.

36 { return _depth; }

◆ getGreenMaskShift()

uint8_t Graphics::Framebuffer::getGreenMaskShift ( )

inline

Definition at line 41 of file framebuffer.hpp.

41 { return _greenMaskShift; }

Here is the caller graph for this function:

◆ getGreenMaskSize()

uint8_t Graphics::Framebuffer::getGreenMaskSize ( )

inline

Definition at line 40 of file framebuffer.hpp.

40 { return _greenMaskSize; }

◆ getHeight()

uint32_t Graphics::Framebuffer::getHeight ( )

inline

Definition at line 35 of file framebuffer.hpp.

35 { return _height; }

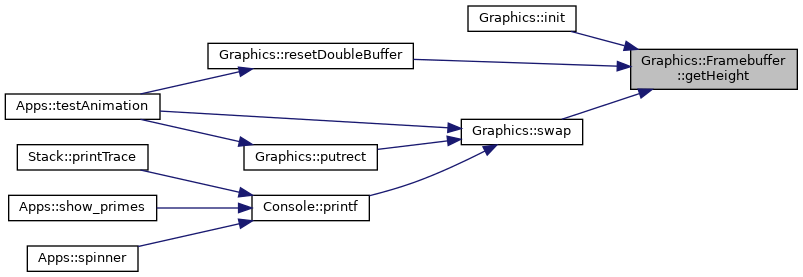

Here is the caller graph for this function:

◆ getModel()

FramebufferMemoryModel Graphics::Framebuffer::getModel ( )

inline

Definition at line 45 of file framebuffer.hpp.

45 { return _memoryModel; }

◆ getPitch()

uint32_t Graphics::Framebuffer::getPitch ( )

inline

Definition at line 37 of file framebuffer.hpp.

37 { return _pitch; }

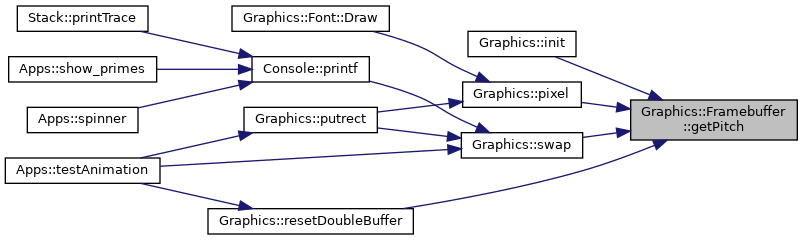

Here is the caller graph for this function:

◆ getPixelWidth()

uint8_t Graphics::Framebuffer::getPixelWidth ( )

inline

Definition at line 44 of file framebuffer.hpp.

44 { return _depth / 8; }

Here is the caller graph for this function:

◆ getRedMaskShift()

uint8_t Graphics::Framebuffer::getRedMaskShift ( )

inline

Definition at line 39 of file framebuffer.hpp.

39 { return _redMaskShift; }

Here is the caller graph for this function:

◆ getRedMaskSize()

uint8_t Graphics::Framebuffer::getRedMaskSize ( )

inline

Definition at line 38 of file framebuffer.hpp.

38 { return _redMaskSize; }

◆ getWidth()

uint32_t Graphics::Framebuffer::getWidth ( )

inline

Definition at line 34 of file framebuffer.hpp.

34 { return _width; }

◆ setBlueMaskShift()

void Graphics::Framebuffer::setBlueMaskShift ( uint8_t val )

inline

Definition at line 56 of file framebuffer.hpp.

56 { _blueMaskShift = val; }

◆ setBlueMaskSize()

void Graphics::Framebuffer::setBlueMaskSize ( uint8_t val )

inline

Definition at line 55 of file framebuffer.hpp.

55 { _blueMaskSize = val; }

◆ setDepth()

void Graphics::Framebuffer::setDepth ( uint16_t val )

inline

Definition at line 49 of file framebuffer.hpp.

49 { _depth = val; }

◆ setGreenMaskShift()

void Graphics::Framebuffer::setGreenMaskShift ( uint8_t val )

inline

Definition at line 54 of file framebuffer.hpp.

54 { _greenMaskShift = val; }

◆ setGreenMaskSize()

void Graphics::Framebuffer::setGreenMaskSize ( uint8_t val )

inline

Definition at line 53 of file framebuffer.hpp.

53 { _greenMaskSize = val; }

◆ setHeight()

void Graphics::Framebuffer::setHeight ( uint16_t val )

inline

Definition at line 48 of file framebuffer.hpp.

48 { _height = val; }

◆ setModel()

void Graphics::Framebuffer::setModel ( FramebufferMemoryModel val )

inline

Definition at line 57 of file framebuffer.hpp.

57 { _memoryModel = val; }

◆ setPitch()

void Graphics::Framebuffer::setPitch ( uint16_t val )

inline

Definition at line 50 of file framebuffer.hpp.

50 { _pitch = val; }

◆ setRedMaskShift()

void Graphics::Framebuffer::setRedMaskShift ( uint8_t val )

inline

Definition at line 52 of file framebuffer.hpp.

52 { _redMaskShift = val; }

◆ setRedMaskSize()

void Graphics::Framebuffer::setRedMaskSize ( uint8_t val )

inline

Definition at line 51 of file framebuffer.hpp.

51 { _redMaskSize = val; }

◆ setWidth()

void Graphics::Framebuffer::setWidth ( uint16_t val )

inline

Definition at line 47 of file framebuffer.hpp.

47 { _width = val; }

Field Documentation

◆ _addr

void* Graphics::Framebuffer::_addr

private

Definition at line 60 of file framebuffer.hpp.

◆ _blueMaskShift

uint8_t Graphics::Framebuffer::_blueMaskShift

private

Definition at line 70 of file framebuffer.hpp.

◆ _blueMaskSize

uint8_t Graphics::Framebuffer::_blueMaskSize

private

Definition at line 69 of file framebuffer.hpp.

◆ _depth

uint16_t Graphics::Framebuffer::_depth

private

Definition at line 63 of file framebuffer.hpp.

◆ _greenMaskShift

uint8_t Graphics::Framebuffer::_greenMaskShift

private

Definition at line 68 of file framebuffer.hpp.

◆ _greenMaskSize

uint8_t Graphics::Framebuffer::_greenMaskSize

private

Definition at line 67 of file framebuffer.hpp.

◆ _height

uint32_t Graphics::Framebuffer::_height

private

Definition at line 62 of file framebuffer.hpp.

◆ _memoryModel

FramebufferMemoryModel Graphics::Framebuffer::_memoryModel

private

Definition at line 71 of file framebuffer.hpp.

◆ _pitch

uint32_t Graphics::Framebuffer::_pitch

private

Definition at line 64 of file framebuffer.hpp.

◆ _redMaskShift

uint8_t Graphics::Framebuffer::_redMaskShift

private

Definition at line 66 of file framebuffer.hpp.

◆ _redMaskSize

uint8_t Graphics::Framebuffer::_redMaskSize

private

Definition at line 65 of file framebuffer.hpp.

◆ _width

uint32_t Graphics::Framebuffer::_width

private

Definition at line 61 of file framebuffer.hpp.

The documentation for this class was generated from the following files:
